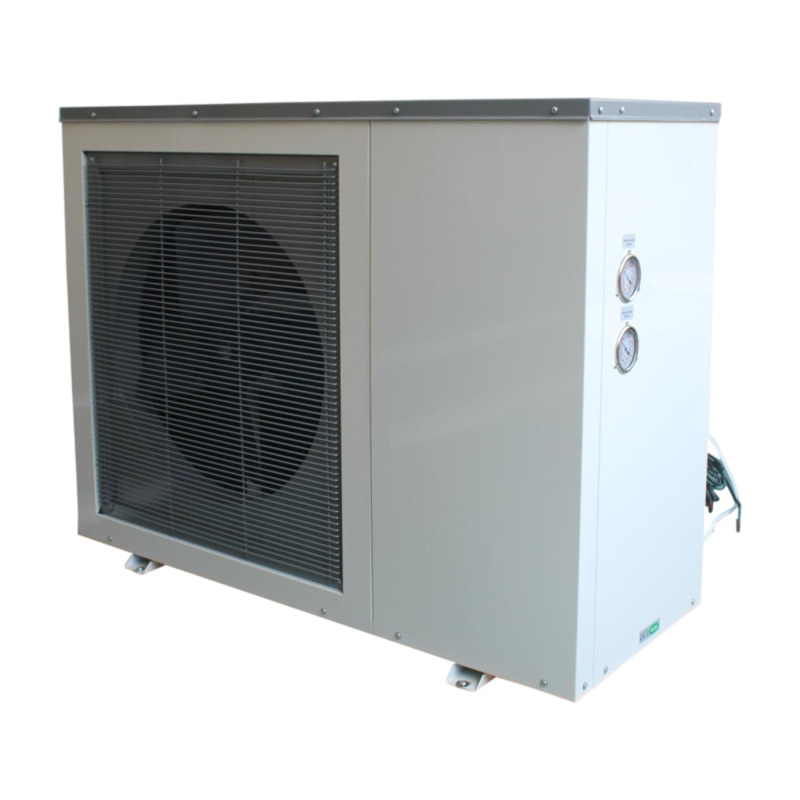

9KW DC Inverter Air to Water Heat Pumps(SHAW-9DM1)

Detail Information

1. DC inverter heat pumps for heating, cooling and hot water.

2. 5 modes: heating only, heating and hot water, hot water only, coolingonly, cooling and hot water.

3. 6KW, 9KW, 11KW, 13KW heating capacity.

4. Receives ON/OFF signal from room thermostat, master controller and smartgrill system, to save more energy.

5. Heating curves for more accurate temperature control.

6. With control for back-up electric heater.

7. With control for 4-way valve to switch between heating/cooling and hotwater circuits.

8. Built-in energy-class A circulating pump.

9. Built-in water flow switch.

10. Built-in auto air discharge valve.

11. Automatically variable fan speed in 3 speeds to optimize efficiency.

12. Fast plugs for wiring between indoor unit and outdoor unit.

13. Low noise design with noise jacket for compressors, low noise fans andstrong casing to reduce vibration and noise.

14. We offer OEM service including different components, casing design,painting color, controller functions etc.

	Model		SHAW-6DM1	SHAW-9DM1	SHAW-11DM1	SHAW-13DM1
Technical Parameters	Max. heating capacity	kW	7.2	10.8	14.3	16.8
	Min. heating capacity	kW	2.5	4.1	4.9	5.8
	Rated heating capacity	kW	6	9	11	13
	Rated heating power input	kW	1.35	2.1	2.58	3.05
	COP		4.44	4.29	4.26	4.26
	Rated cooling capacity	kW	4.8	6.5	7.8	9.1
	Rated cooling power input	kW	1.65	2.25	2.68	3.25
	EER		2.91	2.89	2.91	2.80
	Max. water temp.	℃	60
	Rated water temp.	℃	55
	water flow	m3/h	1	1.50	1.90	2.20
	pressure drop	Kpa	18	22	24	26
	Net weight	kg	72	90	96	105
	Gross weight	kg	84	105	111	120
	Noise	dB(A)	50	52
	Pipe connection	mm	DN20	DN25
	Power supply		220V/1PH/50Hz	220V/1PH/50Hz	220V/1PH/50Hz	220V/1PH/50Hz
	Net size	mm	1110450700	1110450850	1110450850	1080430940
	Package size	mm	1200520850	1200520990	1200520990	11805001080
Standard Features	Compressor	brand	Mitsubishi
	Compressor	quantity	1
	Condenser		plate heat exchanger
	Evaporator		Louverd&hydrophilic fin-tubes
	4-way valve		Yes
	Flow switch		Yes
	Circulation pump		Built-in energy clasee A water pump
	Expansion valve		Electionic expansion valve
	DC Fan motor		40W	80W	80W	170W
	High pressure switch		4.2/3.6MPa
	Low pressure switch		0.02/0.15MPa
	Working mode		cooling, heating, hot water, cooling+hot water, heating+hot water
	Refrigerant		R410a
Remark	1、Working temp.：-25℃~43℃ 2、Test condition：heating mode Ambient temp.：7℃/6℃， inlet/ outlet water temp.：30℃/35℃； cooling mode Ambient temp.：35℃/24℃，inlet/ outlet water temp.：12℃/7℃
