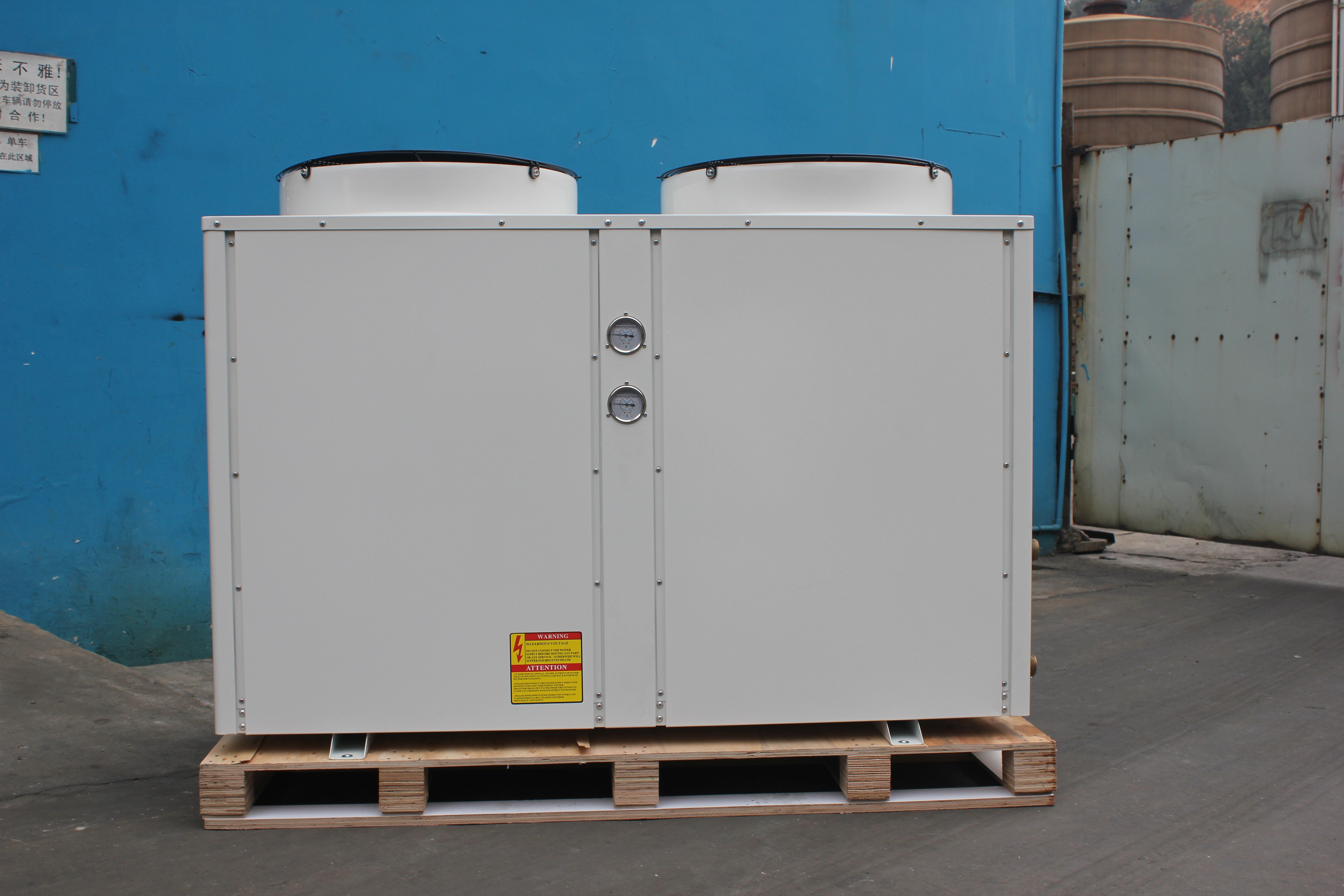

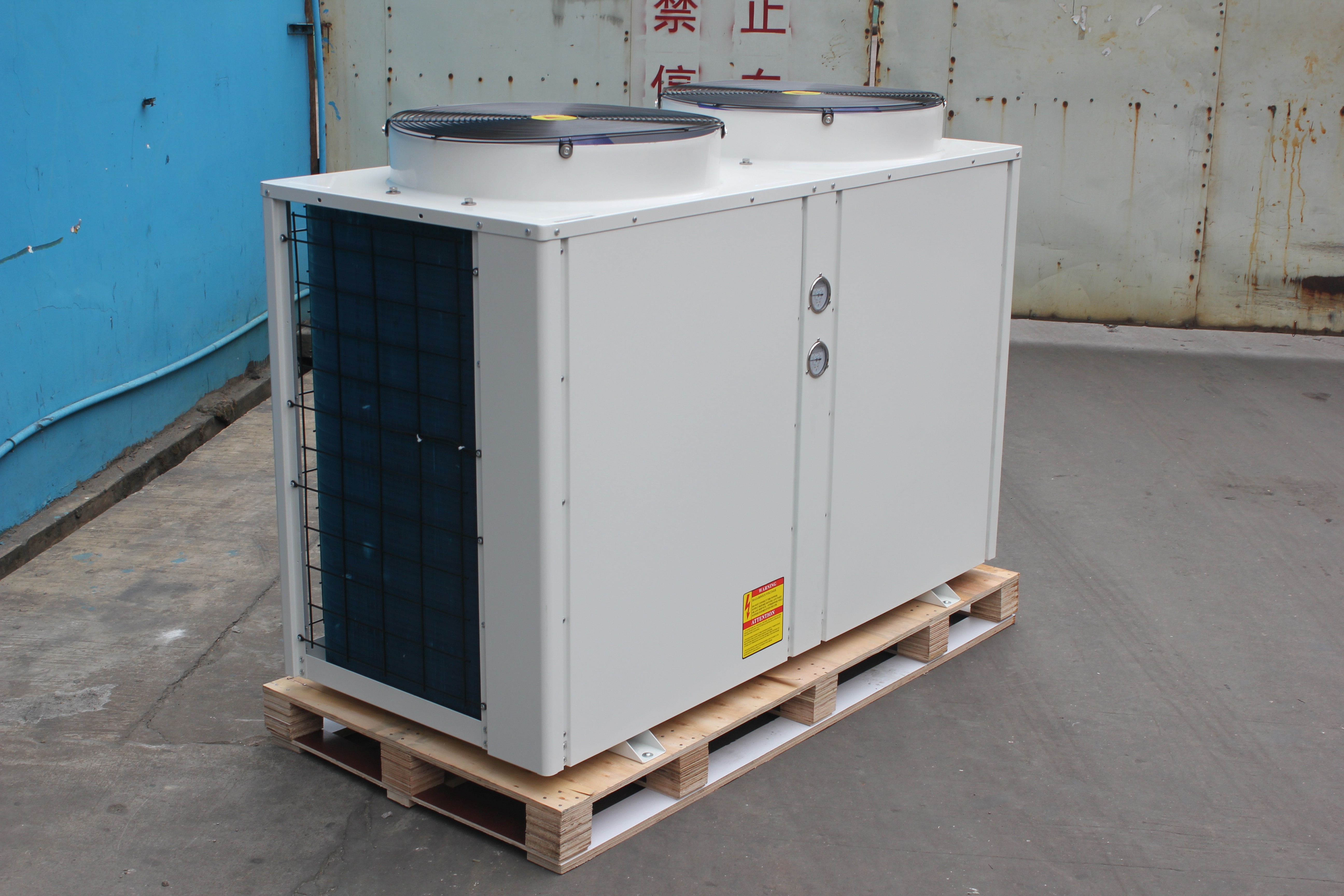

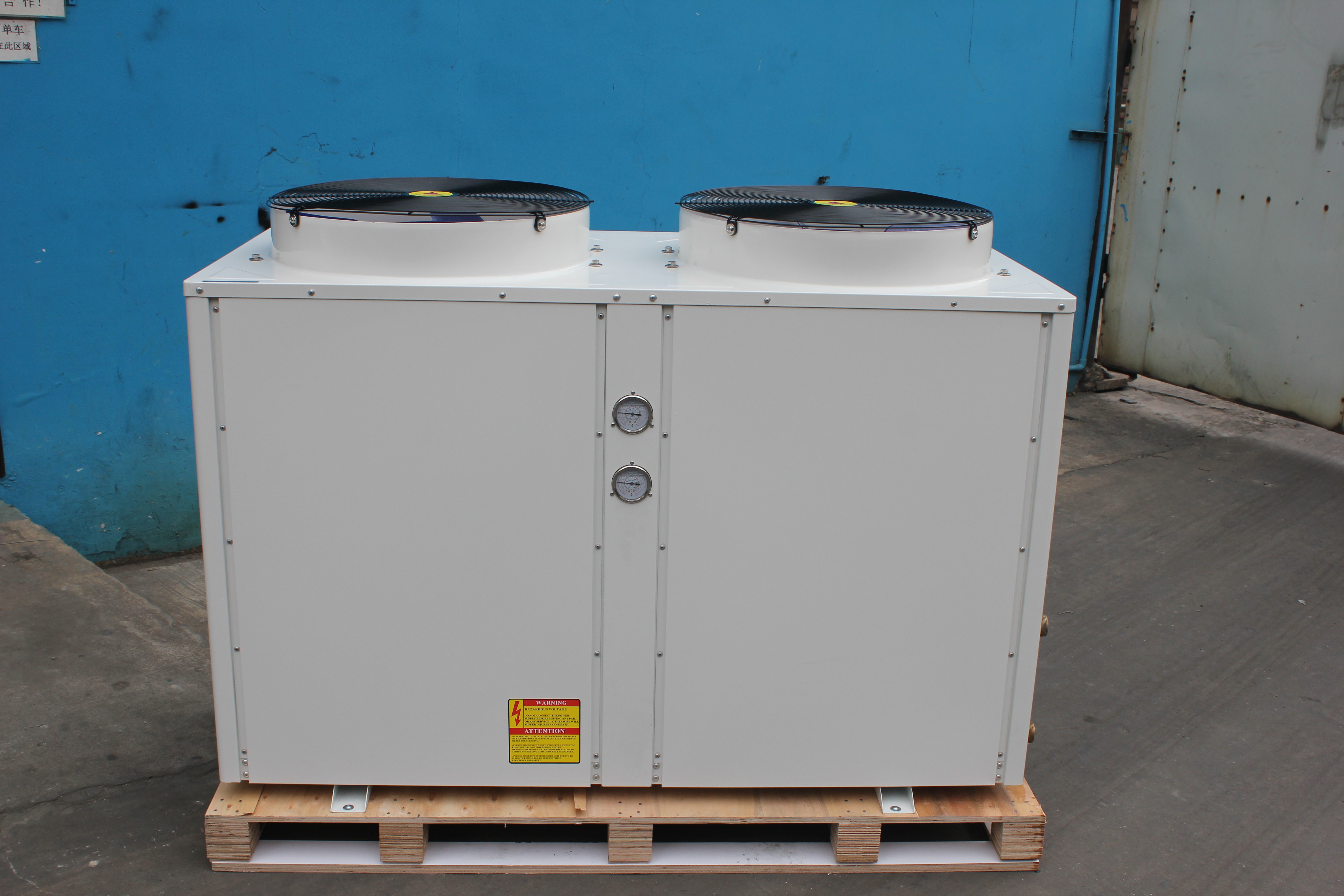

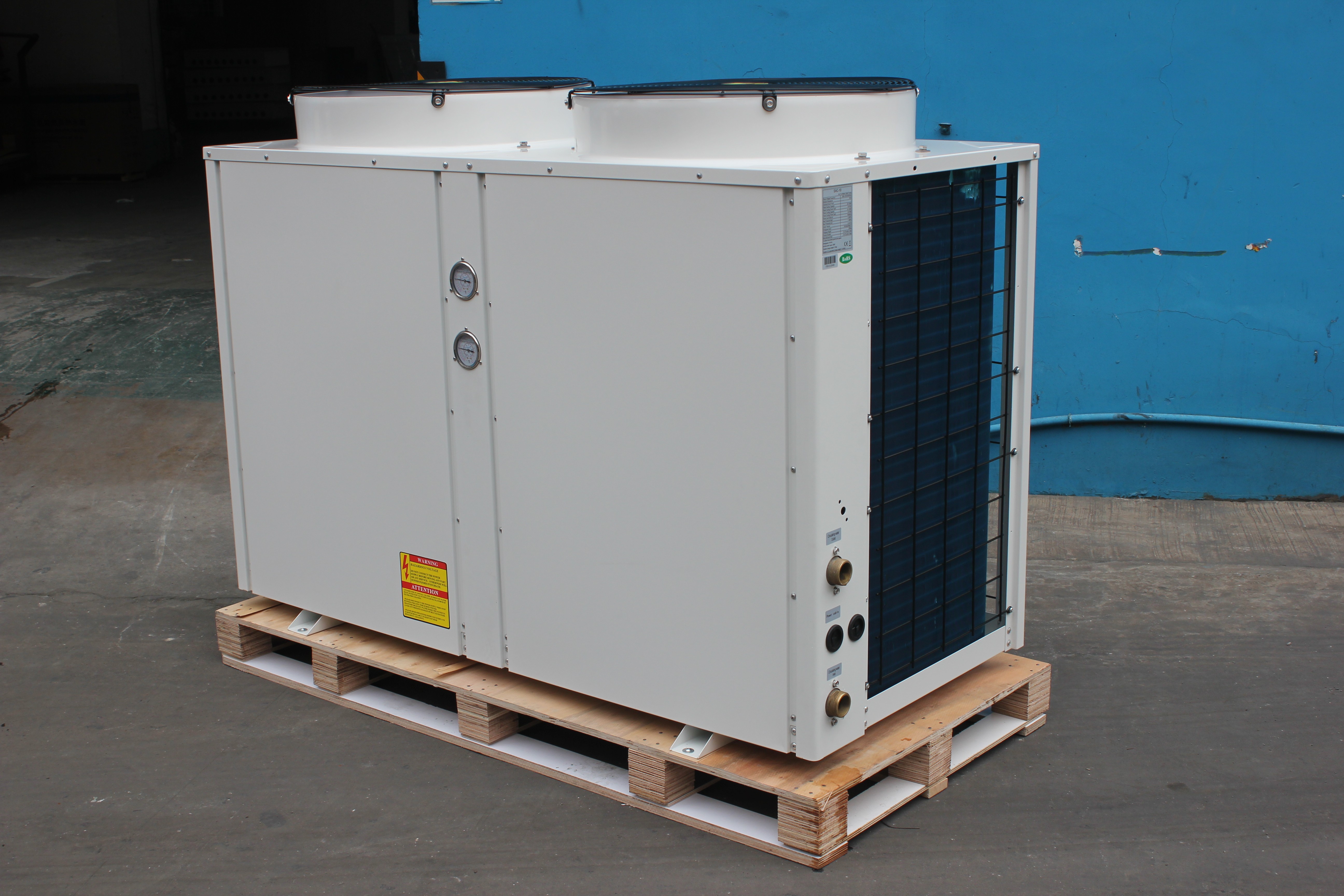

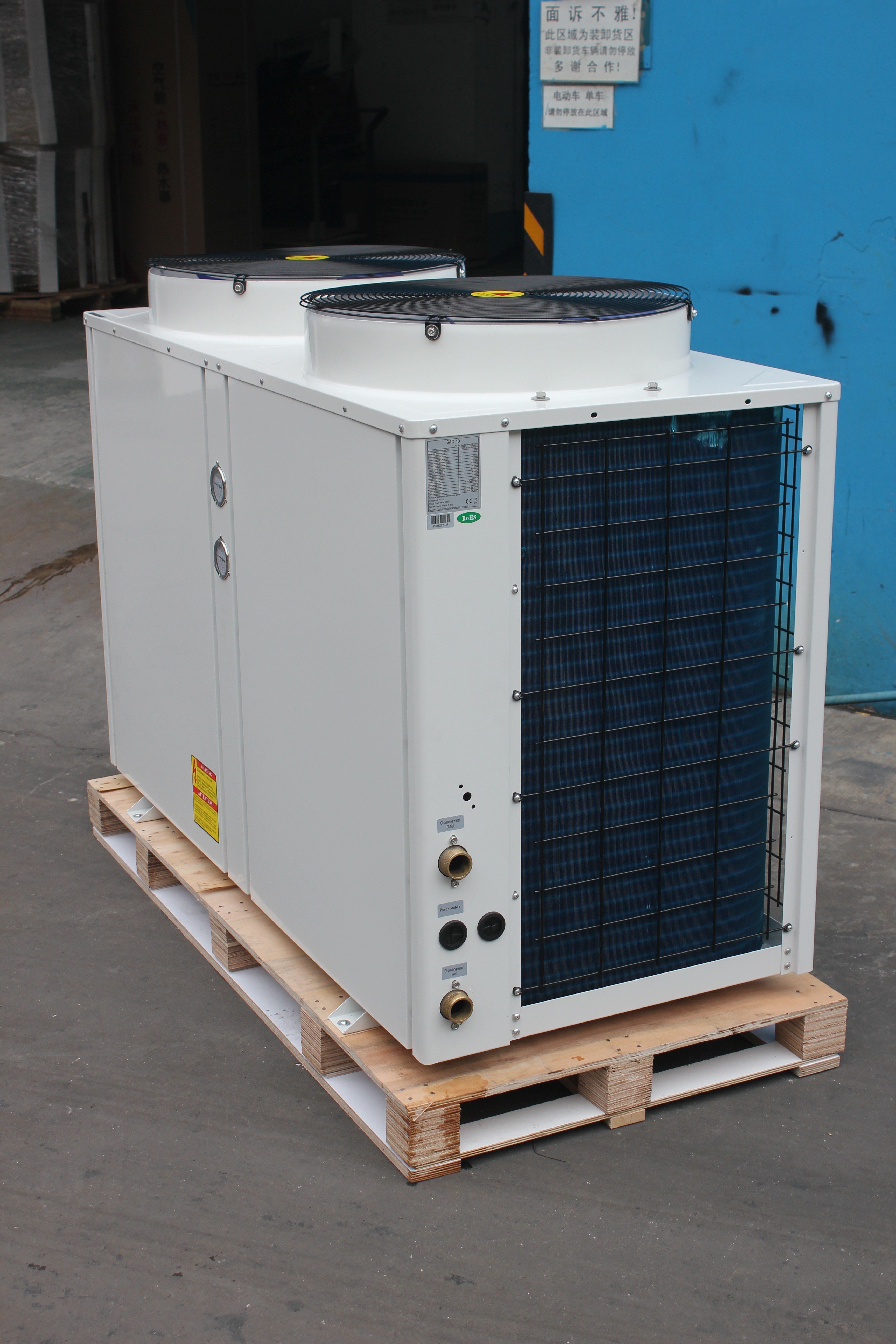

380V 40KW EVI monobloc heat pumps(SHAW-40EVIM)

Categories	EVI Air Source Heat Pumps
Brand	Suoher Inverter Heat Pumps Manufacturer
Model	SHAW-40EVIM
Net dimensions	14956901370(mm)
Packing dimensions	15107201490(mm)
Power supply	380V/3PH/50Hz
Air flow	12000m³/h
Fan rated power	250W*2
Water pressure drop	42Kpa
FOB port	Rongqi, Shunde
Terms of Payment	L/C, T/T
Update Time	Dec 22,2024

Detail Information

1. Heating and hot water modes.

2. Heating capacity 11kw, 12kw, 16kw, 18kw, 20kw, 34kw, 40kw.

3. Work at down to -25DegC.

4. Electronic expansion valve for main circuit and EVI circuit.

5. Receives ON/OFF signal from thermostat, master controller, smart grilletc to save more energy.

6. Heating curves for more comfortable temperature and more energy-saving.

7. Monobloc type.

8. Copeland scroll EVI compressor.

9. With compressor heater.

10. With bottom plate heater.

11. With 3kw back-up electric heater.

12. With energy class A circulating pump.

13. With control for 3-way valve to switch between heating circuit and hotwater circuit.

14. With water flow switch.

15. We offer OEM service including back-up heater, circulating pump, casingdesign, painting color etc.

Model		SHAW-34EVIM	SHAW-40EVIM
Power supply	/	380V/3PH/50Hz	380V/3PH/50Hz
Refrigerant	/	R407C	R407C
Heating capacity ¹	KW	34.5	41.8
Heating power input ¹	KW	7.86	9.55
COP ¹	/	4.39	4.38
Heating capacity ²	KW	25.4	31.5
Heating power input ²	KW	7.98	9.86
COP ²	/	3.18	3.19
Heating capacity ³	KW	18.4	24.1
Heating power input ³	KW	7.91	9.98
COP ³	/	2.33	2.41
Heating capacity ⁴	KW	17.1	21.0
Heating power input ⁴	KW	7.89	9.78
COP ⁴	/	2.17	2.15
Heating capacity ⁵	KW	29.20	35.80
Heating power input ⁵	KW	12.44	14.99
COP ⁵	/	2.35	2.39
Max. water temperature	℃	60	60
Rated water temperature	℃	55	55
Water flow	M³/h	5.6	7.1
Condenser		tube-in-shell	tube-in-shell
Water pressure drop	Kpa	40	42
Water connections	Inch	1.5	1.5
Built-in water flow switch		paddle type	paddle type
Built-in water pump		NO	NO
Built-in electric heater		NO	NO
Built-in auto air vent		NO	NO
Built-in water expansion vessel		NO	NO
Compressor	Brand	Copeland (EVI)	Copeland (EVI)
Compressor	Quantity	2	2
Type of defrosting	/	Reverse circulation	Reverse circulation
Fan quantity		2	2
Air flow	m3/h	12000	12000
Fan rated power	W	250*2	*2502**
Noise	dB(A)	58	58
Net weight	kg	265	287
Gross weight	kg	280	307
Net dimensions	mm	14956901075	*14956901370*
Packing dimensions	mm	15107201190	*15107201490*
