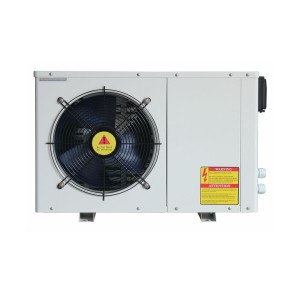

380V 12KW EVI Monobloc Heat Pumps(SHAW-12EVIM)

Categories	EVI Air Source Heat Pumps
Brand	Suoher Inverter Heat Pumps Manufacturer
Model	SHAW-12EVIM
Net dimensions	1110460850(mm)
Packing dimensions	11755301010(mm)
Power supply	380V/3PH/50Hz
Air flow	3250m³/h
Fan rated power	90W
FOB port	Rongqi, Shunde
Terms of Payment	L/C, T/T
Update Time	Nov 16,2024

Detail Information

1. Heating and hot water modes.

2. Heating capacity 11kw, 12kw, 16kw, 18kw, 20kw, 34kw, 40kw.

3. Work at down to -25DegC.

4. Electronic expansion valve for main circuit and EVI circuit.

5. Receives ON/OFF signal from thermostat, master controller, smart grilletc to save more energy.

6. Heating curves for more comfortable temperature and more energy-saving.

7. Monobloc type.

8. Copeland scroll EVI compressor.

9. With compressor heater.

10. With bottom plate heater.

11. With 3kw back-up electric heater.

12. With energy class A circulating pump.

13. With control for 3-way valve to switch between heating circuit and hotwater circuit.

14. With water flow switch.

15. We offer OEM service including back-up heater, circulating pump, casingdesign, painting color etc.

Model		SHAW-11EVIM	SHAW-12EVIM
Power supply	/	220V/1PH/50Hz	380V/3PH/50Hz
Refrigerant	/	R407C	R407C
Heating capacity ¹	KW	10.2	11.2
Heating power input ¹	KW	2.30	2.51
COP ¹	/	4.43	4.46
Heating capacity ²	KW	7.7	8.8
Heating power input ²	KW	2.40	2.70
COP ²	/	3.21	3.26
Heating capacity ³	KW	5.9	6.7
Heating power input ³	KW	2.40	2.70
COP ³	/	2.46	2.48
Heating capacity ⁴	KW	5.0	5.7
Heating power input ⁴	KW	2.30	2.60
COP ⁴	/	2.17	2.19
Heating capacity ⁵	KW	8.60	9.50
Heating power input ⁵	KW	3.57	3.91
COP ⁵	/	2.41	2.43
Max. water temperature	℃	60	60
Rated water temperature	℃	55	55
Water flow	m3/h	1.70	1.80
Condenser		tube-in-shell	tube-in-shell
Water pressure drop	Kpa	22	24
Water connections	Inch	1	1
Built-in water flow switch		paddle type	paddle type
Built-in water pump		NO	NO
Built-in electric heater		NO	NO
Built-in auto air vent		NO	NO
Built-in water expansion vessel		NO	NO
Compressor	Brand	Copeland (EVI)	Copeland (EVI)
Compressor	Quantity	1	1
Type of defrosting	/	Reverse circulation	Reverse circulation
Fan quantity		1	1
Air flow	m³/h	3250	3250
Fan rated power	W	90	90
Noise	dB(A)	52	52
Net weight	kg	100	110
Gross weight	kg	115	125
Net dimensions	mm	1110460850	*1110460850*
Packing dimensions	mm	11755301010	*11755301010*
