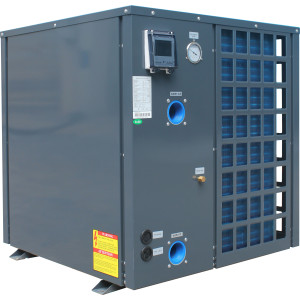

34KW Swimming Pool Heat Pumps(SHPH-34CH)

34KW Swimming Pool Heat Pumps(SHPH-34CH)

34KW Swimming Pool Heat Pumps(SHPH-34CH)
34KW Swimming Pool Heat Pumps(SHPH-34CH)34KW Swimming Pool Heat Pumps(SHPH-34CH)34KW Swimming Pool Heat Pumps(SHPH-34CH)34KW Swimming Pool Heat Pumps(SHPH-34CH)
CategoriesSwimming Pool Heat Pumps
BrandSuoher Inverter Heat Pumps Manufacturer
ModelSHPH-34CH
Net dimensions1495*690*1075(mm)
Packing dimensions1510*720*1190(mm)
Fan motor250W*2
Water connections3inch
Compressor BrandPanasonic (Scroll)
Power supply380V/3PH/50Hz
FOB portRongqi, Shunde
Terms of PaymentL/C, T/T
Update TimeNov 6,2024
Detail Information
1. Electronic expansion valve.

2. R410A refrigerant.

3. Operating ambient temperature range -5~45DegC.

4. Longer titanium coils inside the condenser, higher COP.

5. Low noise fans, durable fan blades.

6. With heat insulation for titanium heat exchanger.

7. Built-in water flow switch.

8. LCD controller with simple operation.

9. OEM/ODM design.





Model



SHPH-34CV

SHPH-42CV

SHPH-52CV

Specification

Heating capacity*

KW

24

31.8

39.5

Heating power input*

KW

5.27

7.38

9.18

Rated current*

A

8.01

11.21

13.95

COP*



4.55

4.31

4.30

Heating capacity**

KW

32

42

50.9

Heating power input**

KW

5.38

7.42

9.22

Rated current**

A

8.17

11.27

14.01

COP**



5.95

5.66

5.52

Max. water temperature

40

Rated water temperature

27

Water flow

m³/h

14.50

18.00

22.00

Net weight

kg

290

540

590

Gross weight

kg

305

560

610

Noise

db

62

65

68

Water connections

inch

3"

Power supply



380V/3PH/50Hz

Net dimensions

mm

1495*690*1075

1495*690*1370

Packing dimensions

mm

1510*720*1190

1510*720*1490

Standard components

Compressor

Brand

Panasonic (Scroll)

Quantity

2

Condenser

PVC+Titanium heat exchanger

Evaporator

Hydrophilic aluminum foil + internal thread copper pipe

4-way valve

Yes

Expansion valve

Sanhua electronic expansion valve

Fan motor

250W*2

Cabinet

Galvanized white metal sheet

Controller

Large LCD screen controller

High pressure switch

4.2/3.6MPa

Low pressure switch

0.02/0.15MPa

Working mode

Heating and Cooling

Refrigerant

R32

Circulation pump

No (Optional)

Remarks

1. Unit working temperature : -10 to 43℃
2.   *Test condition: ambient temp: 15/11, water inlet: 27


 **Test condition: ambient temp: 24/19, water inlet: 27

3. The above is the basic configuration. Water pump is not included in.

4. The above price is based on FOB Guangzhou.
5. The above price is calculated based on the current exchange rate, if the exchange rate fluctuation is over 0.5%,the price will be adjusted accordingly.
6. Payment term: 30% TT in advance, the rest is balanced before the shipment.
7. Delivery time: It depends on the condition of the material inventory, usually 10-30 working days.
