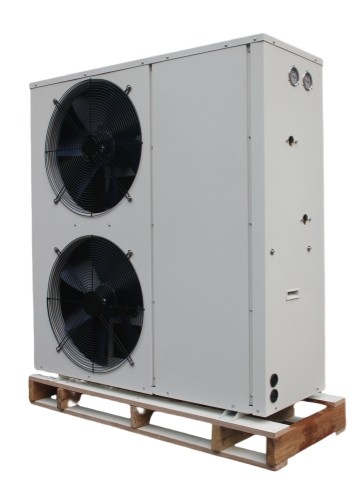

26KW Swimming Pool Heat Pumps(SHPH-26CH-Dual system)

Categories	Swimming Pool Heat Pumps
Brand	Suoher Inverter Heat Pumps Manufacturer
Model	SHPH-26CH(Dual system)
Net dimensions	11104601250(mm)
Packing dimensions	11404701380(mm)
Fan motor	50W*2
Compressor	LAMDA (GREE)*2
Power supply	220V/1PH/50Hz
FOB port	Rongqi, Shunde
Terms of Payment	L/C, T/T
Update Time	Dec 21,2024

Contact Now

Favorites

Detail Information

1. Electronic expansion valve.

2. R410A refrigerant.

3. Operating ambient temperature range -5~45DegC.

4. Longer titanium coils inside the condenser, higher COP.

5. Low noise fans, durable fan blades.

6. With heat insulation for titanium heat exchanger.

7. Built-in water flow switch.

8. LCD controller with simple operation.

9. OEM/ODM design.

	Model		SHPH-21CH-1	SHPH-21CH-2	SHPH-26CH-1	SHPH-26CH-2
Specification	Heating capacity*	KW	15.2	16.1	19.5	19.3
	Heating power input*	KW	3.06	3.51	4.61	4.58
	Rated current*	A	13.91	5.33	20.95	6.96
	COP*		4.97	4.59	4.23	4.21
	Heating capacity**	KW	19.7	20.9	25.2	25
	Heating power input**	KW	3.12	3.58	4.67	4.62
	Rated current**	A	14.18	5.44	21.23	7.02
	COP**		6.31	5.84	5.40	5.41
	Max. water temperature	℃	40
	Rated water temperature	℃	27
	Water flow	m³/h	7.50		9.00
	Net weight	kg	275.00		285.00
	Gross weight	kg	290.00		300.00
	Noise	db	60.00		62.00
	Water connections	inch	2"
	Power supply		220V/1PH/50Hz	380V/3PH/50Hz	220V/1PH/50Hz	380V/3PH/50Hz
	Net dimensions	mm	11104601250
	Packing dimensions	mm	11404701380
Standard components	Compressor	Brand	GMCC	Panasonic (Scroll)	LAMDA (GREE)	Panasonic (Scroll)
	Compressor	Quantity	1	1	2	1
	Condenser		PVC+Titanium heat exchanger
	Evaporator		Hydrophilic aluminum foil + internal thread copper pipe
	4-way valve		Yes
	Expansion valve		Sanhua electronic expansion valve
	Fan motor		50W*2
	Cabinet		Galvanized white metal sheet
	Controller		Large LCD screen controller
	High pressure switch		4.2/3.6MPa
	Low pressure switch		0.02/0.15MPa
	Working mode		Heating and Cooling
	Refrigerant		R32
	Circulation pump		No (Optional)

Remarks:

1. Unit working temperature : -10℃to 43℃

2. *Test condition: ambient temp: 15℃/11℃, water inlet: 27℃

**Test condition: ambient temp: 24℃/19℃, water inlet: 27℃

3. The above is the basic configuration. Water pump is not included in.

4. The above price is based on FOB Guangzhou.

5. The above price is calculated based on the current exchange rate, if the exchange rate fluctuation is over 0.5%,the price will be adjusted accordingly.

6. Payment term: 30% TT in advance, the rest is balanced before the shipment.

7. Delivery time: It depends on the condition of the material inventory, usually 10-30 working days.
